Introduction
The goal of this tutorial is to demonstrate how to fine-tune a relatively small multilingual embedding model — such as intfloat/multilingual-e5-base with just 278M parameters — with a few lines of code. The objective is to adapt the model to a specific retrieval task, namely: improving the ability to retrieve relevant answers for given queries in a multilingual setting, focusing primarily on English and German.
The fine-tuning was performed on our dedicated GPU server GEX44, equipped with a NVIDIA RTX™ 4000 SFF Ada Generation GPU (20 GB vRAM):
The project for fine-tuning has the following structure:
RETRIEVAL_FINETUNING/
├── .venv/
├── data/
│ ├── qa_data.csv
│ ├── qa_test_set.csv
│ ├── qa_training_set.csv
│ ├── qa_validation_set.csv
├── .env
├── eval.py
├── split_data.py
├── train.pyStep 1 - Preparing the Data
Before fine-tuning an embedding model, you need to split your dataset into at least three parts: training, validation, and test sets.
- The training set is used to fine-tune the model.
- The validation set is used to monitor the model’s performance during training, typically after a fixed number of steps.
- The test set is used to evaluate the model’s final performance after fine-tuning is complete.
You can perform the split using the train_test_split function from Scikit-learn. In our setup, we first allocated 80% of the data for training. Then, the remaining 20% was further split equally into validation and test sets.
The size of the dataset plays a significant role in fine-tuning. In our experiment, we used approximately 100,000 examples, which is generally sufficient for additional fine-tuning. This phase typically requires much less data than pretraining or initial task-specific fine-tuning, as the model has already learned both general language patterns and the structure of the task. It only needs to be further adapted to the task within a specific domain.
The data preparation can be implemented as follows:
# File: split_data.py
from pathlib import Path
import pandas as pd
from sklearn.model_selection import train_test_split
DATA_DIR = Path("data")
DATA_PATH = DATA_DIR / "qa_data.csv"
TRAIN_PATH = DATA_DIR / "qa_training_set.csv"
VALIDATION_PATH = DATA_DIR / "qa_validation_set.csv"
TEST_PATH = DATA_DIR / "qa_test_set.csv"
VALIDATION_TEST_SIZE = 0.2 # 20% validation and test set from the original dataset
TEST_SIZE = 0.5 # 20% from the original dataset will be split into 50 % validation and 50% test set
def main():
df = pd.read_csv(DATA_PATH)
train_df, validation_test_df = train_test_split(df, test_size=VALIDATION_TEST_SIZE, random_state=42, shuffle=True)
validation_df, test_df = train_test_split(validation_test_df, test_size=TEST_SIZE, random_state=42, shuffle=True)
train_df.to_csv(TRAIN_PATH, index=False)
validation_df.to_csv(VALIDATION_PATH, index=False)
test_df.to_csv(TEST_PATH, index=False)
print(f"Dataset split into {len(train_df)} training, {len(validation_df)} validation, and {len(test_df)} test examples.")
print(f"Saved to '{TRAIN_PATH}', '{VALIDATION_PATH}', and '{TEST_PATH}'.")Step 2 - Fine-Tuning
Fine-tuning a pretrained embedding model can be implemented in just a few lines of code. As mentioned earlier, our goal is to demonstrate the quickest and simplest way to fine-tune such a model. More advanced and flexible configurations can be implemented using the SentenceTransformerTrainer along with SentenceTransformerTrainingArguments, which expose a wide range of training options.
The following code snippet shows the necessary steps to fine-tune the encoder:
# File: train.py
import gc
import os
from pathlib import Path
import pandas as pd
import torch
from datasets import Dataset
from sentence_transformers import (
SentenceTransformer,
SentenceTransformerTrainer,
SentenceTransformerTrainingArguments,
evaluation,
losses,
)
# GPU memory optimization
os.environ["PYTORCH_CUDA_ALLOC_CONF"] = "expandable_segments:True"
DATA_DIR = Path("data")
TRAIN_PATH = DATA_DIR / "qa_training_set.csv"
VALIDATION_PATH = DATA_DIR / "qa_validation_set.csv"
MODEL_NAME = "intfloat/multilingual-e5-base"
OUTPUT_DIR = "output/multilingual-e5-base_fine-tuned"
def main():
# 1. Garbage collection before fine-tuning
gc.collect()
torch.cuda.empty_cache()
# 2. Load data for fine-tuning
train_dataset = load_data(TRAIN_PATH)
validation_dataset = load_data(VALIDATION_PATH)
# 3. Initialize the model to fine-tune
model = SentenceTransformer(MODEL_NAME)
# 4. Define the loss function
train_loss = losses.MultipleNegativesRankingLoss(model)
# 5. Prepare evaluator for validation
validation_evaluator = prepare_evaluator(VALIDATION_PATH)
# 6. Specify training arguments
args = SentenceTransformerTrainingArguments(
output_dir=OUTPUT_DIR,
num_train_epochs=3,
per_device_train_batch_size=24,
per_device_eval_batch_size=24,
learning_rate=2e-5,
weight_decay=0.01,
warmup_ratio=0.1, # 10% of total steps for warmup
fp16=True, # enable mixed precision training
eval_strategy="steps",
eval_steps=500,
save_strategy="epoch",
logging_steps=500,
)
# 7. Create a trainer and fine-tune the model
trainer = SentenceTransformerTrainer(
model=model,
args=args,
train_dataset=train_dataset,
eval_dataset=validation_dataset,
loss=train_loss,
evaluator=validation_evaluator,
)
trainer.train()
print(f"\n:white_check_mark: Fine-tuning completed! Checkpoints saved to: {OUTPUT_DIR}")The MultipleNegativesRankingLoss is well suited for training data where each example contains a single positive pair, and negative samples are implicitly taken from other items in the same batch.
When fine-tuning the model using the SentenceTransformerTrainingArguments, several key training arguments were configured to optimize performance, manage resource usage effectively, and improve evaluation results. These include:
-
Weight decay: A regularization technique that adds a penalty term to the loss function, helping to prevent overfitting during training. A common starting value for weight decay is
0.01. -
Mixed Precision Training: This technique enables speeding up training and reducing GPU memory usage.
-
Batch size: When using mixed precision, it is important that the batch size is a multiple of 8 to ensure the efficient use of tensor cores. In our case, we were able to set the batch size to
24. -
Evaluation and save strategy: In contrast to the evaluation strategy — which was configured to run every
500steps—we set the save strategy toepochto avoid excessive disk usage.
During training, the loss should gradually decrease over time. A growing gap between the training loss and the evaluation loss may indicate overfitting, where the model performs well on the training data but poorly on unseen data. The gradient norm should also remain within a reasonable range — neither too large (which may indicate unstable updates), nor too small (which could suggest vanishing gradients or training stagnation).
Below are the helper functions used to load training data and initialize the Information Retrieval evaluator:
# File: train.py
def load_data(path):
df = pd.read_csv(path)
anchors = []
positives = []
for _, row in df.iterrows():
anchors.append(f"query: {row['Question']}")
positives.append(f"passage: {row['Answer']}")
return Dataset.from_dict(
{
"anchor": anchors,
"positive": positives,
}
)
def prepare_evaluator(path):
df = pd.read_csv(path)
queries = {}
corpus = {}
relevant_docs = {}
for idx, row in df.iterrows():
qid = f"q{idx}"
did = f"d{idx}"
queries[qid] = f"query: {row['Question']}"
corpus[did] = f"passage: {row['Answer']}"
relevant_docs[qid] = {did}
return evaluation.InformationRetrievalEvaluator(queries, corpus, relevant_docs)These functions use the input format recommended for multilingual E5 models in query-passage (or in this case, query-answer) fine-tuning tasks. For evaluation during training, the InformationRetrievalEvaluator provides a simple way to assess model performance on retrieval tasks.

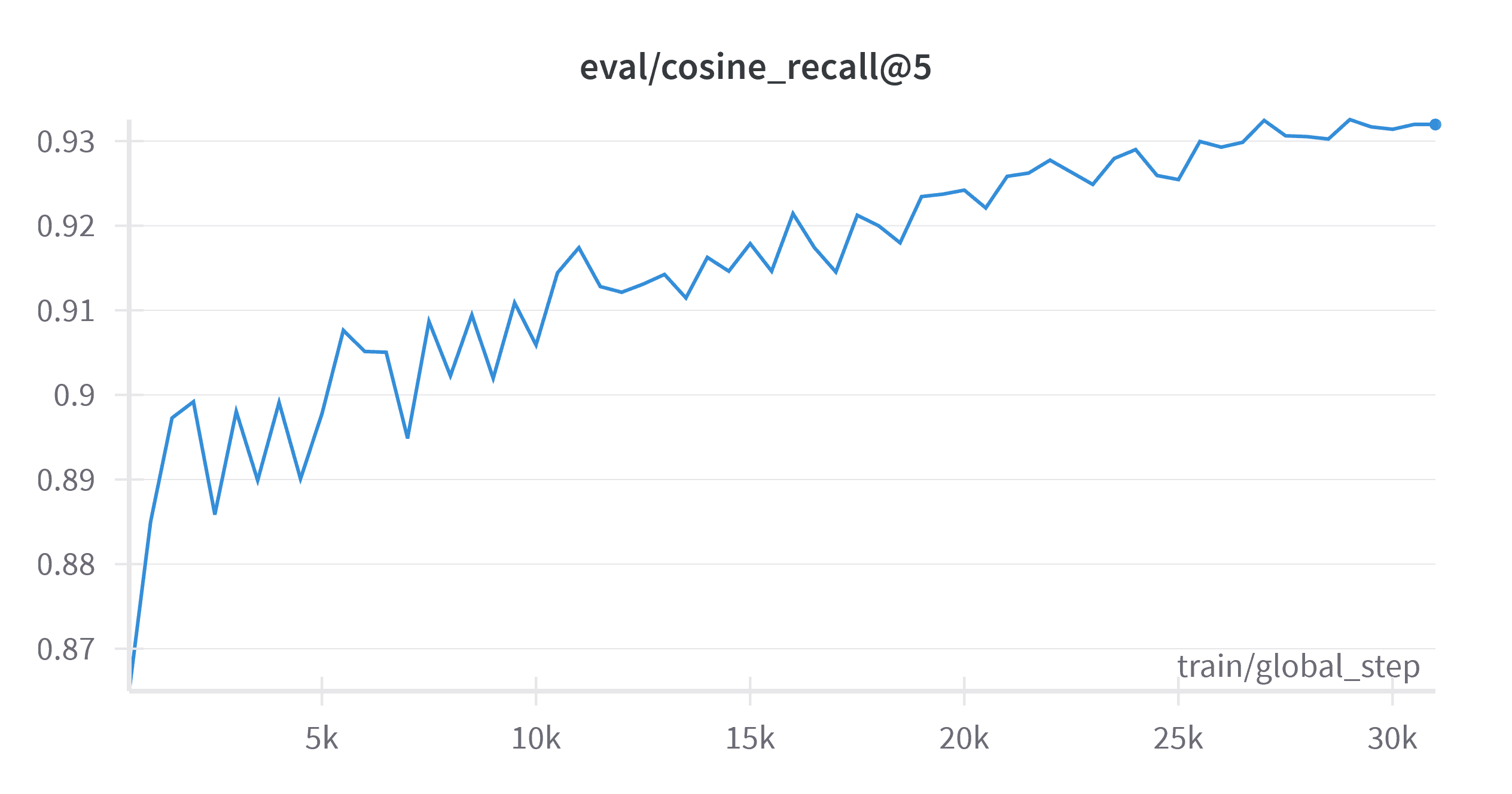

For example, the following plot — created with Weights & Biases — shows the cosine_recall@5 metric plotted against training steps. An improvement of approximately 6.5% can be observed from the beginning to the end of fine-tuning, indicating that the model successfully learned to retrieve more relevant answers.
Step 3 - Comparing the Base and the Fine-Tuned Model
The InformationRetrievalEvaluator evaluates the model by generating embeddings from the test set of queries and their corresponding passages (or answers, in our case).
- For each query in the test set, the top-k most similar answers are retrieved using cosine similarity. These retrieved answers are then compared against the ground-truth answer.
- Based on this comparison, various evaluation metrics are calculated at the query level, including cosine_accuracy@k, cosine_precision@k, cosine_recall@k, cosine_ndcg@k, cosine_map@k, and cosine_mrr@k.
- These metrics are then averaged across all queries to provide a final evaluation summary.
While many metrics are available, in our specific setup — where there is only one relevant answer per query — some of them become equivalent:
- cosine_recall@k yields a binary score for each query: 0 if the correct answer is not retrieved in the top-k results, and 1 if it is. As a result, cosine_recall@k becomes equivalent to cosine_accuracy@k.
- For the same reason, cosine_map@k and cosine_mrr@k yield identical results.
The following script shows the evaluation process:
# File: eval.py
from pathlib import Path
import pandas as pd
from sentence_transformers import SentenceTransformer, evaluation
DATA_DIR = Path("data")
TEST_PATH = DATA_DIR / "qa_test_set.csv"
BASE_MODEL_NAME = "intfloat/multilingual-e5-base"
CHECKPOINT_PATH = "output/multilingual-e5-base_fine-tuned/checkpoint-30000"
def main():
df = pd.read_csv(TEST_PATH)
queries, corpus, relevant_docs = prepare_ir_evaluator(df)
print("Loading models...")
base_model = SentenceTransformer(BASE_MODEL_NAME)
finetuned_model = SentenceTransformer(CHECKPOINT_PATH)
print("\nEvaluating the base model...")
base_results = evaluate_model(base_model, queries, corpus, relevant_docs)
print(f"\nEvaluating the fine-tuned checkpoint {CHECKPOINT_PATH} ...")
finetuned_results = evaluate_model(finetuned_model, queries, corpus, relevant_docs)
print("\n--- Comparison ---")
metrics = finetuned_results.keys()
for metric in metrics:
base_val = base_results[metric]
fin_val = finetuned_results[metric]
print(f"{metric}: base={base_val:.4f} | fine-tuned={fin_val:.4f} | Δ={fin_val - base_val:.4f}")Below are the helper functions used to evaluate the models:
# File: eval.py
def prepare_ir_evaluator(df):
queries = {}
corpus = {}
relevant_docs = {}
for idx, row in df.iterrows():
qid = f"q{idx}"
did = f"d{idx}"
queries[qid] = f"query: {row['Question']}"
corpus[did] = f"passage: {row['Answer']}"
relevant_docs[qid] = {did}
return queries, corpus, relevant_docs
def evaluate_model(model, queries, corpus, relevant_docs):
evaluator = evaluation.InformationRetrievalEvaluator(queries, corpus, relevant_docs)
result = evaluator(model)
return resultConclusion
- The fine-tuning was conducted on a GEX44 server equipped with a NVIDIA RTX™ 4000 SFF Ada Generation GPU (20 GB vRAM). A single GPU was sufficient, and the entire process completed within a few hours.
- Despite using mostly default hyperparameters and training for only three epochs on approximately 80,000 examples, the evaluation metrics showed clear improvements. This demonstrates that fine-tuning is effective, even with minimal effort.
