How to install the Jexactyl game server management panel

Introduction

This tutorial will teach you how to install the Jexactyl Panel using the official installation steps.

WARNING: Currently, there is no official way to uninstall it completely without wiping your server.

Disclaimer 1: I do not own this game panel nor do I take responsibility for any damage done to your system. I recommend you take a backup of your server.

Disclaimer 2: This tutorial is for installing only the panel!

Prerequisites

• Server with Ubuntu or Debian
  • Root access or access to a user with sudo permissions
  • You cannot have had Pterodactyl/Jexactyl or anything related to it installed to this system before.

This tutorial was tested with Ubuntu 22.04 / 24.04 and Debian 12, however this tutorial should also work with older versions.

Step 1 - Installing the panel

Step 1.1 - Installing prerequisites

First, you need to install the prerequisites. The following commands will setup the dependencies of Jexactyl on your server. They are very similar to Pterodactyl.

These commands install the Redis and MariaDB repositories, then php version 8.1, the required extensions for it and finally, NGINX (Engine-X!!) as the web server.

If you're on Ubuntu, make sure you are logged in as root. If you aren't, type sudo su and enter your sudo password.

• Ubuntu 20.04 or below

  apt update && apt -y install software-properties-common curl apt-transport-https ca-certificates gnupg
  LC_ALL=C.UTF-8 add-apt-repository -y ppa:ondrej/php
  curl -sS https://downloads.mariadb.com/MariaDB/mariadb_repo_setup | sudo bash

• Ubuntu 22.04 or above

  apt update && apt -y install software-properties-common curl apt-transport-https ca-certificates gnupg
  LC_ALL=C.UTF-8 add-apt-repository -y ppa:ondrej/php

• Debian 12

  sudo apt update && sudo apt -y install software-properties-common curl apt-transport-https ca-certificates gnupg
  # Import the GPG key for the PHP repository and add the PHP repository to your system.
  sudo sh -c 'echo "deb https://packages.sury.org/php/ $(lsb_release -sc) main" > /etc/apt/sources.list.d/php.list'
  sudo wget -qO - https://packages.sury.org/php/apt.gpg -O /etc/apt/trusted.gpg.d/sury-php.gpg

If you're using root, you can now go back to your sudo user. If you used sudo su to switch to the root user, run exit to end the session with root.

The next steps are the same for all distributions:

# Import the GPG key for the redis repository and add the redis repository to your system.
curl -fsSL https://packages.redis.io/gpg | sudo gpg --dearmor -o /usr/share/keyrings/redis-archive-keyring.gpg
echo "deb [signed-by=/usr/share/keyrings/redis-archive-keyring.gpg] https://packages.redis.io/deb $(lsb_release -cs) main" | sudo tee /etc/apt/sources.list.d/redis.list

sudo apt update && sudo apt -y install php8.1 php8.1-{cli,gd,mysql,pdo,mbstring,tokenizer,bcmath,xml,fpm,curl,zip} mariadb-server nginx tar unzip git redis-server
curl -sS https://getcomposer.org/installer | sudo php -- --install-dir=/usr/local/bin --filename=composer

To check if everything was installed successfully, you can run:

php -v && php -m
nginx -v
mariadb --version
composer --version

If the system can't find the command, you can run export PATH=$PATH:/usr/sbin to add the path and check again.

Step 1.2 - Downloading the jexactyl files

You will have to create the required directory and enter it to install and extract the panel:

sudo mkdir -p /var/www/jexactyl
cd /var/www/jexactyl

Now, you can download and extract the files using the following commands:

sudo curl -Lo panel.tar.gz https://github.com/jexactyl/jexactyl/releases/latest/download/panel.tar.gz
sudo tar -xzvf panel.tar.gz
sudo chmod -R 755 storage/* bootstrap/cache/

Step 2 - Setting up the database

Next, you will have to configure the database. If you followed this tutorial, you should have MariaDB installed on your system. You can setup the database by running the commands below.

These commands will only allow the jexactyl user to be accessed by localhost, aka the current server. You can also rename panel to something like gamepanel, jexactyl, anything! Just make sure to change it in the configuration earlier and in the GRANT command as it's very important.

Replace yourPassword with a secure password.

# Login to MySQL/MariaDB
sudo mariadb -u root -p

# Remember to change 'yourPassword' below with a unique password
CREATE USER 'jexactyl'@'127.0.0.1' IDENTIFIED BY 'yourPassword';
CREATE DATABASE panel;
GRANT ALL PRIVILEGES ON panel.* TO 'jexactyl'@'127.0.0.1' WITH GRANT OPTION;
exit

Make sure you note down the password as you will need it again in "Step 4"!

Step 3 - Setting up the environment configuration

Next, you will have to configure basic settings such as creating the first user. For this, make sure you're still in the /var/www/jexactyl directory.

• Copy the example file.

  The .env.example file contains the skeleton of the configuration, mainly just empty values, we'll fill them later.

  sudo cp .env.example .env

• Setup the Composer dependencies.

  Composer is a dependency manager for PHP. It's used a lot for Laravel applications, which Jexactyl, Pterodactyl and the new Pelican panel are built in.

  sudo composer install --no-dev --optimize-autoloader

• Generate the encryption key.

  If you lose it, you will not be able to access the Panel data anymore, be careful. You can generate it using:

  sudo php artisan key:generate --force

• Setup the environment:

  sudo php artisan p:environment:setup

  For most of the settings, you can use the default / recommended option. When it asks about the application URL, you can enter a domain or an IP address. However, it is strongly recommended to enter a domain. "Step 5" below explains how to create and use an SSL certificate, so if you have a domain, you can put https in front of it.

• Setup the database on the panel:

  sudo php artisan p:environment:database

  "Step 2" explained how to setup the database with the default values (jexactyl, 127.0.0.1, panel). You can hit enter to confirm the default values. When it asks about the database password, enter whatever you set for yourPassword in "Step 2".

  If you changed the database name/username when you were creating the username and database in MySQL, you will need to enter it here!

• Setup the email service (Optional)

  You can optionally setup the email service if you have a custom service that is not PHP.

  sudo php artisan p:environment:mail # Not required to run the Panel.

• Migrate the database to apply all required patches.

  These patches will also add the default Game Eggs, such as Minecraft, Rust, etc.

  sudo php artisan migrate --seed --force

• Create the first user

  Creating the first user is easy. You can do so by running the following command and responding to the questions:

  Make sure you set admin as yes, the default is no. However you will need to be able to login and create other users somehow!

  sudo php artisan p:user:make

• Give your webserver permission to access the web directory.

  sudo chown -R www-data:www-data /var/www/jexactyl/*

Step 4 - System Queue Worker

In this step, you will have to setup the queue worker which handles background tasks. It also handles scheduling, such as running commands in a game server, or having a restart schedule. Maybe even a Rust Wipe script!

The service will be placed in /etc/systemd/system as it's the folder for services created by the user.

Create the file /etc/systemd/system/jexactyl.service using sudo and add the following content:

# Jexactyl Queue Worker File
# ----------------------------------

[Unit]
Description=Jexactyl Queue Worker

[Service]
User=www-data
Group=www-data
Restart=always
ExecStart=/usr/bin/php /var/www/jexactyl/artisan queue:work --queue=high,standard,low --sleep=3 --tries=3
StartLimitInterval=180
StartLimitBurst=30
RestartSec=5s

[Install]
WantedBy=multi-user.target

To ensure it starts on boot and to start it right now, you can use sudo systemctl enable jexactyl --now. --now Makes sure it gets started too.

Step 5 - Setting up the webserver

In this tutorial, I will be using the NGINX web server with SSL. First you will have to download certbot and it's NGINX plugin. You can do so using the following commands:

sudo apt install -y certbot python3-certbot-nginx

Certbot uses LetsEncrypt SSL, which is a free Certificate Authority as TLS certificates are quite pricy normally!

Once it is downloaded, run the following command:

Replace the example domain with your own!

certbot certonly --standalone -d example.com

We'll use certonly --standalone as our configuration has it's own SSL parameters which would be deleted if we used the NGINX without SSL configuration and then had Certbot add the SSL server directive.

Next, you will have to remove the default config so it can be replaced with the new one:

sudo rm /etc/nginx/sites-available/default && sudo rm /etc/nginx/sites-enabled/default

Now, create the new file /etc/nginx/sites-available/panel.conf using sudo and add the following content:

The guide would be too long to explain every directive in the NGINX configuration, so you can refer to the nginx documentation for more information.

Replace example.com with your own domain!

server {
    listen 80;
    server_name example.com;
    return 301 https://$server_name$request_uri;
}

server {
    listen 443 ssl http2;
    server_name example.com;

    root /var/www/jexactyl/public;
    index index.php;

    access_log /var/log/nginx/jexactyl.app-access.log;
    error_log  /var/log/nginx/jexactyl.app-error.log error;

    # allow larger file uploads and longer script runtimes
    client_max_body_size 100m;
    client_body_timeout 120s;

    sendfile off;

    # SSL Configuration
    ssl_certificate /etc/letsencrypt/live/example.com/fullchain.pem;
    ssl_certificate_key /etc/letsencrypt/live/example.com/privkey.pem;
    ssl_session_cache shared:SSL:10m;
    ssl_protocols TLSv1.2 TLSv1.3;
    ssl_ciphers "ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-CHACHA20-POLY1305:ECDHE-RSA-CHACHA20-POLY1305:DHE-RSA-AES128-GCM-SHA256:DHE-RSA-AES256-GCM-SHA384";
    ssl_prefer_server_ciphers on;

    add_header X-Content-Type-Options nosniff;
    add_header X-XSS-Protection "1; mode=block";
    add_header X-Robots-Tag none;
    add_header Content-Security-Policy "frame-ancestors 'self'";
    add_header X-Frame-Options DENY;
    add_header Referrer-Policy same-origin;

    location / {
        try_files $uri $uri/ /index.php?$query_string;
    }

    location ~ \.php$ {
        fastcgi_split_path_info ^(.+\.php)(/.+)$;
        fastcgi_pass unix:/run/php/php8.1-fpm.sock;
        fastcgi_index index.php;
        include fastcgi_params;
        fastcgi_param PHP_VALUE "upload_max_filesize = 100M \n post_max_size=100M";
        fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
        fastcgi_param HTTP_PROXY "";
        fastcgi_intercept_errors off;
        fastcgi_buffer_size 16k;
        fastcgi_buffers 4 16k;
        fastcgi_connect_timeout 300;
        fastcgi_send_timeout 300;
        fastcgi_read_timeout 300;
        include /etc/nginx/fastcgi_params;
    }

    location ~ /\.ht {
        deny all;
    }
}

Click here to view a configuration file without a domain and without an SSL certificate

server {
        listen 80 default_server;
        listen [::]:80 default_server;
    root /var/www/jexactyl/public;
    index index.php;
    access_log /var/log/nginx/jexactyl.app-access.log;
    error_log  /var/log/nginx/jexactyl.app-error.log error;
    # allow larger file uploads and longer script runtimes
    client_max_body_size 100m;
    client_body_timeout 120s;
    sendfile off;
    add_header X-Content-Type-Options nosniff;
    add_header X-XSS-Protection "1; mode=block";
    add_header X-Robots-Tag none;
    add_header Content-Security-Policy "frame-ancestors 'self'";
    add_header X-Frame-Options DENY;
    add_header Referrer-Policy same-origin;

    location / {
        try_files $uri $uri/ /index.php?$query_string;
    }

    location ~ \.php$ {
        fastcgi_split_path_info ^(.+\.php)(/.+)$;
        fastcgi_pass unix:/run/php/php8.1-fpm.sock;
        fastcgi_index index.php;
        include fastcgi_params;
        fastcgi_param PHP_VALUE "upload_max_filesize = 100M \n post_max_size=100M";
        fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
        fastcgi_param HTTP_PROXY "";
        fastcgi_intercept_errors off;
        fastcgi_buffer_size 16k;
        fastcgi_buffers 4 16k;
        fastcgi_connect_timeout 300;
        fastcgi_send_timeout 300;
        fastcgi_read_timeout 300;
        include /etc/nginx/fastcgi_params;
    }

    location ~ /\.ht {
        deny all;
    }
}

Use the following commands to create a link, test the configuration file and, if everything is OK, restart NGINX:

sudo ln -s /etc/nginx/sites-available/panel.conf /etc/nginx/sites-enabled/panel.conf
sudo nginx -t
sudo systemctl restart nginx

Step 6 - Login

You can now go to your domain and login! To login, use the user data you setup for the new admin user in "Step 3". After you've logged in as admin, click on the gear symbol to switch to the settings page.

Step 7 - Setting up a node

This installation will be on the same machine as the node. However this may not be what you always want, so make sure you run the commands on the right machine!

Step 7.1 - Creating the location

Click on the icon that looks like an arrow. It should be named Locations.

On the top right, there's a Create New button. Click it and it should look like this:

Enter a short code, I usually go for the ISO 3166-1 alpha-2 (2 letter country code) name, then the state/province (if applicable), then three letters from the city (HEL for Helsinki, ASH for Ashburn, etc).

The description can and probably should be the full location name, to avoid issues!

Step 7.2 - Creating the node

Once it's created, head over to the Nodes tab. In the left menu bar, you can find it directly under the "Locations" icon.

Click Create New. Don't get intimidated! I will cover every part of the node creation!

If you followed the first part of the guide, you should be restricted to SSL connections only, which is what I recommend for a proper experience!

In the right section, you need to set the memory and disk space of your server. If you want to assign more ram and storage than you have, you can add an Overallocation percentage. The ports can be changed but you need to make sure that they're open in the firewall!

Step 7.3 - Adding ports

After creating the node, you need to add ports. For the IP address, just set it to the node's IP. The IP Alias should be the subdomain, but you can set it to anything. Some people set it to private to try hiding the IP, however you can always just find the IP in the Network tab of the server.

You can enter ports in ranges, like 25565-25585, or single ports such as 25565,25577,25599. I usually just add 25565-25585 to start off, then go up by 10-20.

Step 7.4 - Downloading and creating

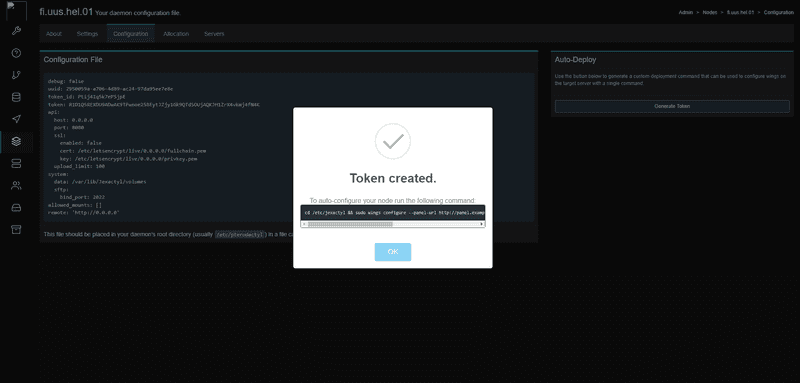

Once the ports are added, go into the configuration tab at the top and click Generate token. Save the command for later.

At the time of writing this guide, Jexactyl uses the Pterodactyl Wings daemon, so we can just use these commands to install it:

# Install docker so that we can create the containers for each server
sudo curl -sSL https://get.docker.com/ | CHANNEL=stable bash
# Enable it on boot so that we don't need to do anything to it
sudo systemctl enable --now docker
# Create the directory, download the file and mark it as executable
sudo mkdir -p /etc/jexactyl
sudo curl -L -o /usr/local/bin/wings "https://github.com/pterodactyl/wings/releases/latest/download/wings_linux_$([[ "$(uname -m)" == "x86_64" ]] && echo "amd64" || echo "arm64")"
sudo chmod u+x /usr/local/bin/wings
sudo ln -s /etc/jexactyl /etc/pterodactyl

Then run the command you saved earlier. You should get this at the end of the output:

Successfully configured wings.

Step 7.5 - Creating the service

To be able to run it on startup, we need to create a service, like the jexactyl one.

Create the new file /etc/systemd/system/wings.service using sudo.

Enter the following content in it:

[Unit]
Description=Pterodactyl Wings Daemon
After=docker.service
Requires=docker.service
PartOf=docker.service

[Service]
User=root
WorkingDirectory=/etc/pterodactyl
LimitNOFILE=4096
PIDFile=/var/run/wings/daemon.pid
ExecStart=/usr/local/bin/wings
Restart=on-failure
StartLimitInterval=180
StartLimitBurst=30
RestartSec=5s

[Install]
WantedBy=multi-user.target

Then run sudo systemctl enable --now wings, to run it on startup.

You should see a green heart beating on the left side of the name. If not, you should check the JavaScript console and the Network tab to see what's causing the issue.

Conclusion

Good job, you've successfully installed the panel and setup a node on the same server! You can now create servers!

License: MIT
