Bypassing CGNAT for a Home Server using WireGuard Relay

Introduction

Many internet service providers (ISPs) use Carrier-Grade NAT (CGNAT), which prevents you from directly port-forwarding and accessing your home server from the outside world. This tutorial explains how to bypass CGNAT by using a cloud Virtual Private Server (VPS) with a public IP address as a WireGuard VPN relay.

By the end of this tutorial, your home server will maintain a persistent connection to the VPS. Your client devices (like a laptop or smartphone) will connect to the VPS, which will securely route your traffic back to your home server. This allows you to access your self-hosted services remotely without exposing them directly to the public internet.

Prerequisites

• A cloud server (VPS) running Linux with a public IPv4 address.
• A home server running Linux.
• WireGuard installed on your VPS, home server, and client devices.

Example terminology

• VPS WireGuard IP: 10.0.0.1
• Home Server WireGuard IP: 10.0.0.2
• Client1 Device WireGuard IP: 10.0.0.3
• Client2 Device WireGuard IP: 10.0.0.4

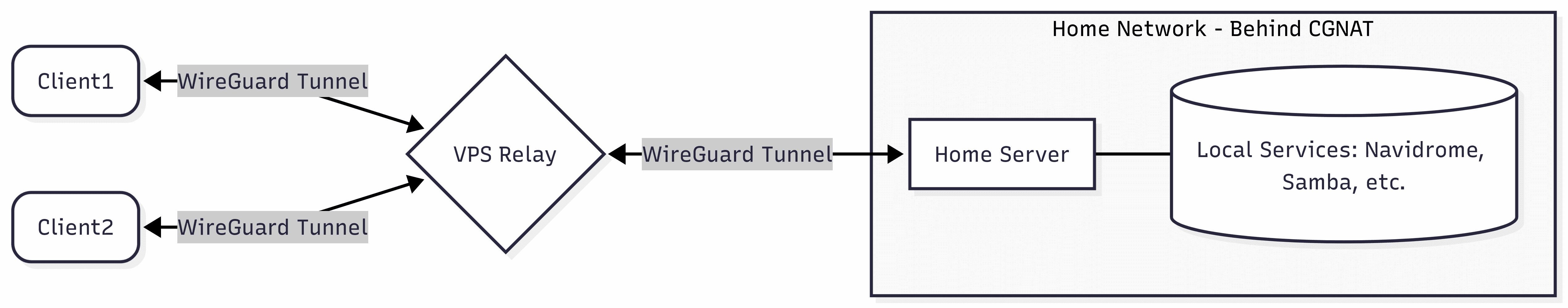

Setup Overview

Step 1 - Generate WireGuard Keypairs

It is generally easiest to generate all WireGuard keypairs on one trusted, secure device, and then securely copy each key to its respective destination device.

Run the following commands to generate private and public keys for your VPS, home server, and remote clients:

# Generate VPS keys
wg genkey | tee vps_private.key | wg pubkey > vps_public.key

# Generate Home Server keys
wg genkey | tee homeserver_private.key | wg pubkey > homeserver_public.key

# Generate Remote Client 1 keys
wg genkey | tee client1_private.key | wg pubkey > client1_public.key

# Generate Remote Client 2 keys
wg genkey | tee client2_private.key | wg pubkey > client2_public.key

You should now have the following files:

holu@secure-device:~$ ls -la
-rw-r--r-- 1 root root   45 May 26 12:09 client1_private.key
-rw-r--r-- 1 root root   45 May 26 12:09 client1_public.key
-rw-r--r-- 1 root root   45 May 26 12:09 client2_private.key
-rw-r--r-- 1 root root   45 May 26 12:09 client2_public.key
-rw-r--r-- 1 root root   45 May 26 12:09 homeserver_private.key
-rw-r--r-- 1 root root   45 May 26 12:09 homeserver_public.key
-rw-r--r-- 1 root root   45 May 26 12:09 vps_private.key
-rw-r--r-- 1 root root   45 May 26 12:09 vps_public.key

Keep these files secure. You will need the contents of these files in the upcoming steps.

Step 2 - Secure the VPS

Before configuring the VPN, it is highly recommended to secure your VPS.

A Note on VPS Security: Disabling password authentication is an important first step, but remember that doing so means you must have your private SSH key present on any device you use to log into the VPS via SSH. Furthermore, this is just a basic setup. To further harden your server against automated brute-force attacks, consider installing and configuring additional tools like fail2ban.

• Secure SSH Access

  If you haven't already, ensure you are logging into your VPS using an SSH key rather than a password. Harden your SSH configuration by editing the config file:

  sudo nano /etc/ssh/sshd_config

  Ensure the following values are set:

  PasswordAuthentication no
  PubkeyAuthentication yes
  PermitEmptyPasswords no

  Restart the SSH service:

  sudo systemctl restart ssh

• Enable IP Forwarding

  To allow the VPS to route traffic between your client devices and your home server, you must enable IPv4 forwarding.

  echo "net.ipv4.ip_forward=1" | sudo tee -a /etc/sysctl.conf
  sudo sysctl -p

• Configure the Firewall (UFW)

  Configure your UFW to allow SSH and WireGuard traffic, while denying other incoming connections by default.

  sudo ufw default deny incoming
  sudo ufw default allow outgoing

  sudo ufw allow OpenSSH
  sudo ufw allow 51820/udp

  sudo ufw enable

Step 3 - VPS WireGuard Configuration

Now, configure the WireGuard interface on your VPS.

Create and open the WireGuard configuration file:

sudo nano /etc/wireguard/wg0.conf

Add the following configuration, replacing the placeholders with the actual keys generated in Step 1:

[Interface]
Address = 10.0.0.1/24
ListenPort = 51820
PrivateKey = <INSERT_VPS_PRIVATE_KEY>

# Peer: Home Server
[Peer]
PublicKey = <INSERT_HOMESERVER_PUBLIC_KEY>
AllowedIPs = 10.0.0.2/32

# Peer: Remote Client 1
[Peer]
PublicKey = <INSERT_CLIENT1_PUBLIC_KEY>
AllowedIPs = 10.0.0.3/32

# Peer: Remote Client 2
[Peer]
PublicKey = <INSERT_CLIENT2_PUBLIC_KEY>
AllowedIPs = 10.0.0.4/32

Note on adding multiple devices: You can add as many [Peer] blocks to this VPS configuration as you need. For every additional remote device you want to connect (like an extra tablet, phone, or laptop), simply generate a new key pair on that device, add a new [Peer] block here with its PublicKey, and assign it a unique IP address in the AllowedIPs field (e.g., 10.0.0.5/32, 10.0.0.6/32, etc.).

Start the WireGuard interface and enable it to start on boot:

sudo wg-quick up wg0
sudo systemctl enable wg-quick@wg0

Step 4 - Home Server Peer Configuration

Next, configure your home server. Because this server is behind CGNAT, it cannot accept incoming connections. Instead, it must reach out to the VPS and keep that connection alive.

Create the configuration file on your home server:

sudo nano /etc/wireguard/wg0.conf

Add the following configuration:

[Interface]
Address = 10.0.0.2/24
PrivateKey = <INSERT_HOMESERVER_PRIVATE_KEY>

[Peer]
PublicKey = <INSERT_VPS_PUBLIC_KEY>
Endpoint = <INSERT_VPS_PUBLIC_IP>:51820
AllowedIPs = 10.0.0.0/24
PersistentKeepalive = 25

Note: The PersistentKeepalive = 25 setting is critical here. Because the home server is behind a strict firewall/CGNAT, it must regularly send a "keepalive" packet to keep the outbound tunnel open so the VPS can route return traffic to it.

Start the WireGuard interface:

sudo wg-quick up wg0
sudo systemctl enable wg-quick@wg0

Step 5 - Client Device Configuration

Configure your remote devices (e.g., a laptop or smartphone) to connect to the VPN.

This configuration uses split tunneling. By setting AllowedIPs = 10.0.0.0/24, only traffic destined for your home server and other VPN peers is routed through WireGuard. Your normal internet browsing will continue to use your local internet connection.

Create the configuration file on your client device:

sudo nano /etc/wireguard/wg0.conf

[Interface]
Address = 10.0.0.3/24
PrivateKey = <INSERT_CLIENT1_PRIVATE_KEY>
DNS = 1.1.1.1

[Peer]
PublicKey = <INSERT_VPS_PUBLIC_KEY>
Endpoint = <INSERT_VPS_PUBLIC_IP>:51820
AllowedIPs = 10.0.0.0/24
PersistentKeepalive = 25

Same for other client (different VPN IP and private key):

[Interface]
Address = 10.0.0.4/24
PrivateKey = <INSERT_CLIENT2_PRIVATE_KEY>
DNS = 1.1.1.1

[Peer]
PublicKey = <INSERT_VPS_PUBLIC_KEY>
Endpoint = <INSERT_VPS_PUBLIC_IP>:51820
AllowedIPs = 10.0.0.0/24
PersistentKeepalive = 25

Client Usage

• Linux: Bring the tunnel up and down with:

  sudo wg-quick up wg0
  sudo wg-quick down wg0

• Mobile (Android/iOS): Import the configuration into the official WireGuard app and toggle the tunnel on or off.

Step 6 - Testing Connectivity

You can verify the connection is working by pinging the devices across the VPN tunnel.

You can run sudo tcpdump -i wg0 -n icmp on the machine that is getting pinged to verify whether ICMP echo requests are arriving on the WireGuard interface.

• On the VPS

  sudo wg show

  Click here for example output on VPS

  holu@vps-relay:~$ sudo wg show
  interface: wg0
    public key: <VPS_PUBLIC_KEY>
    private key: (hidden)
    listening port: 51820

  peer:  <homeserver_public_key>
    endpoint: <homeserver_ip>:<port>
    allowed ips: 10.0.0.2/32
    latest handshake: 21 seconds ago
    transfer: 18.67 GiB received, 267.22 MiB sent

  peer:  <client1_public_key>
    endpoint: <client1_ip>:<port>
    allowed ips: 10.0.0.3/32
    latest handshake: 4 days, 3 hours, 45 minutes, 25 seconds ago
    transfer: 13.74 GiB received, 648.07 MiB sent

  peer:  <client2_public_key>
    endpoint: <client2_ip>:<port>
    allowed ips: 10.0.0.4/32
    latest handshake: 5 days, 8 hours, 49 minutes, 49 seconds ago
    transfer: 250.77 GiB received, 18.02 MiB sent

• From the Client Device

  # Ping the VPS
  ping -c 3 10.0.0.1

  # Ping the Home Server
  ping -c 3 10.0.0.2

  Click here for example output on Client Device

  holu@client-device:~$ sudo wg-quick up wg0
  [#] ip link add wg0 type wireguard
  [#] wg setconf wg0 /dev/fd/63
  [#] ip -4 address add 10.0.0.3/24 dev wg0
  [#] ip link set mtu 1420 up dev wg0

  holu@client-device:~$ ping -c 3 10.0.0.1
  PING 10.0.0.1 (10.0.0.1) 56(84) bytes of data.
  64 bytes from 10.0.0.1: icmp_seq=1 ttl=64 time=57.9 ms
  64 bytes from 10.0.0.1: icmp_seq=2 ttl=64 time=53.9 ms
  64 bytes from 10.0.0.1: icmp_seq=3 ttl=64 time=54.0 ms
  --- 10.0.0.1 ping statistics ---
  3 packets transmitted, 3 received, 0% packet loss, time 2004ms
  rtt min/avg/max/mdev = 53.915/55.267/57.895/1.858 ms

  holu@client-device:~$ ping -c 3 10.0.0.2
  PING 10.0.0.1 (10.0.0.2) 56(84) bytes of data.
  64 bytes from 10.0.0.2: icmp_seq=1 ttl=63 time=109 ms
  64 bytes from 10.0.0.2: icmp_seq=2 ttl=63 time=108 ms
  64 bytes from 10.0.0.2: icmp_seq=3 ttl=63 time=108 ms
  --- 10.0.0.2 ping statistics ---
  3 packets transmitted, 3 received, 0% packet loss, time 2004ms
  rtt min/avg/max/mdev = 107.841/108.150/108.704/0.392 ms

• From the Home Server

  # Ping the VPS
  ping -c 3 10.0.0.1

  # Ping the Client
  ping -c 3 10.0.0.3

  Click here for example output on Home Server

  holu@home-server:~$ ping -c 3 10.0.0.3
  PING 10.0.0.3 (10.0.0.3) 56(84) bytes of data.
  64 bytes from 10.0.0.3: icmp_seq=1 ttl=63 time=109 ms
  64 bytes from 10.0.0.3: icmp_seq=2 ttl=63 time=108 ms
  64 bytes from 10.0.0.3: icmp_seq=3 ttl=63 time=108 ms
  --- 10.0.0.3 ping statistics ---
  3 packets transmitted, 3 received, 0% packet loss, time 2004ms
  rtt min/avg/max/mdev = 107.771/108.203/108.868/0.477 ms

  holu@home-server:~$ ping -c 3 10.0.0.1
  PING 10.0.0.1 (10.0.0.1) 56(84) bytes of data.
  64 bytes from 10.0.0.1: icmp_seq=1 ttl=64 time=54.3 ms
  64 bytes from 10.0.0.1: icmp_seq=2 ttl=64 time=54.0 ms
  64 bytes from 10.0.0.1: icmp_seq=3 ttl=64 time=54.5 ms
  --- 10.0.0.1 ping statistics ---
  3 packets transmitted, 3 received, 0% packet loss, time 2004ms
  rtt min/avg/max/mdev = 54.042/54.271/54.496/0.185 ms

A Note on Performance and Latency

Routing through a central VPS creates two separate VPN tunnels, which inherently adds extra hops and encryption overhead. To minimize lag, always choose a VPS region physically closest to your local server. While this added latency isn't ideal for real-time applications, this architecture works perfectly for standard self-hosted services like Navidrome, SSH, Immich, Obsidian, and Samba.

Conclusion

You have successfully set up a WireGuard VPN relay using a cloud VPS. Your home server can now bypass CGNAT restrictions, giving you secure, private remote access to your self-hosted LAN services (like file sharing, media servers, or internal dashboards) from anywhere in the world, without exposing them to the public internet.
